MARZOLI RINGFRAME AUTOMATION :

    Automation Package (PLC system attachment) for Ring Frame in Textiles industry e.g. Marzoli NSF-3

    • Upgradation of the PLC system from old Siemens S5 PLC to latest Allen Bradley PLC system and conversion of old Keypad Display to 10” Touchscreen HMI.

    • Retrofitt automation solution for Marzoli NSF3/L Ring Frame.

    • Conversion of existing old Siemens S5 PLC system to latest Allen Bradley PLC system and User Interface of 10” Touchscreen HMI.

    • SCADA software solution for Centralized Monitoring of all Ring frame machines and Shift wise / daily Reports for the Production data management..

Marzoli Ring Frame details & specifications.

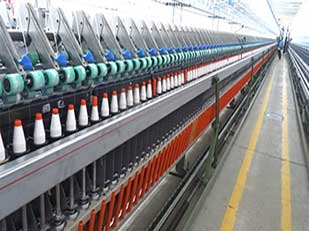

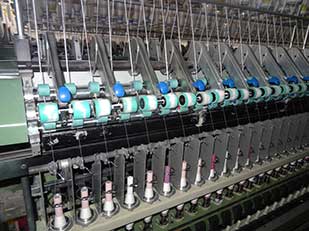

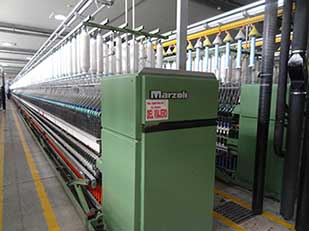

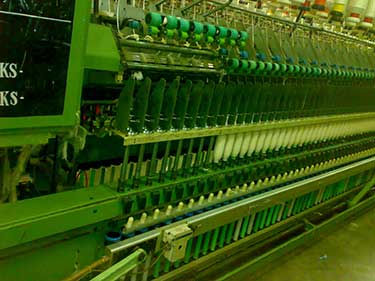

Marzoli NSF3/L Ring Frame with Auto doffer :


  1. Marzoli NSF3/L Ring Frame With Autodoffer :

Model : NSF3
Year : 1996
Doffing : Automatic
No of Spdl / Mc : 864
Spindle Gauge mm : 75
Bobbin Length mm : 260
Drafting Make : 3 over 3
Drafting Type : PK225-SKF
Ring Dia mm : 54
OHTC : Available
OHTC Make : Magitex
Linked to : No
Special attachment : Slub/Fancy/Multicount

Retrofit automation package is provided for the above  Marzoli NSF3/L Ring Frame machine Successfully installed 10 automation package attachments for Marzoli NSF3/L Ring Frame at Raymond UCO Denim Pvt Ltd. Yavatmal.


SCADA software solution for Centralized Monitoring of all Ring frame machines and Shift wise / daily Reports for the Production data management.

Customer’s Feedback :

RAYMOND UCO DENIM PVT LTD, YAVATMAL
Marzoli NSF3/L Ring Frame with Auto doffer :

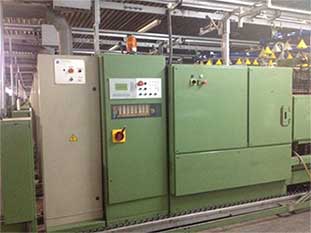

We have NSF3 ring frame machine. Old system was equipped with Siemens S5 Siemens PLC.


Problem facing with OLD system :

  1. S5 PLC was obsolete and support not available from Siemens
  2. OEM own HMI which is out dated.
  3. No support from OEM
  4. Trouble shooting was difficult.
  5. Frequent Breakdown of Machine.
  6. Spare cost was very high.

We have installed Pyramid Automation’s retrofit attachment for Marzoli NSF3/L Ring Frame

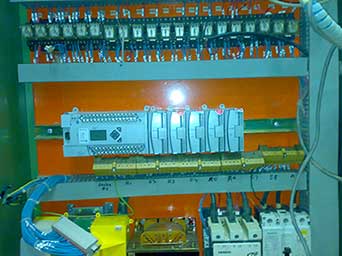

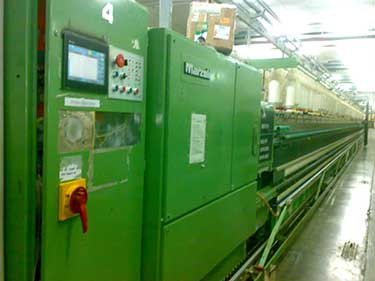

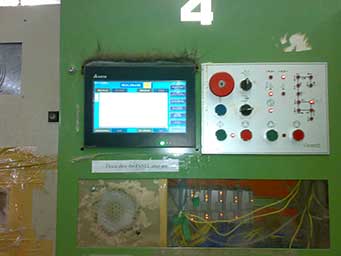

Pyramid’s Automation Package for  Marzoli NSF3/L Ring Frame successfully  converted old S5 PLC system with latest Allen Bradley PLC  and 10” Color Touchscreen HMI.

Advantages with new system :

  • User friendly.
  • Easy Troubleshooting
  • Low cost.
  • Easy availability of spare and system.
  • Minimize breakdown.
  • Increased productivity.
  • SCADA software solution for Centralized Monitoring of all 10 nos. of Marzoli RingFrames and Shift wise / daily Reports for the Production data management.
